Sunday, December 20, 2015

Aircraft walkaround vol. 57: Sikorsky SH-60B Seahawk

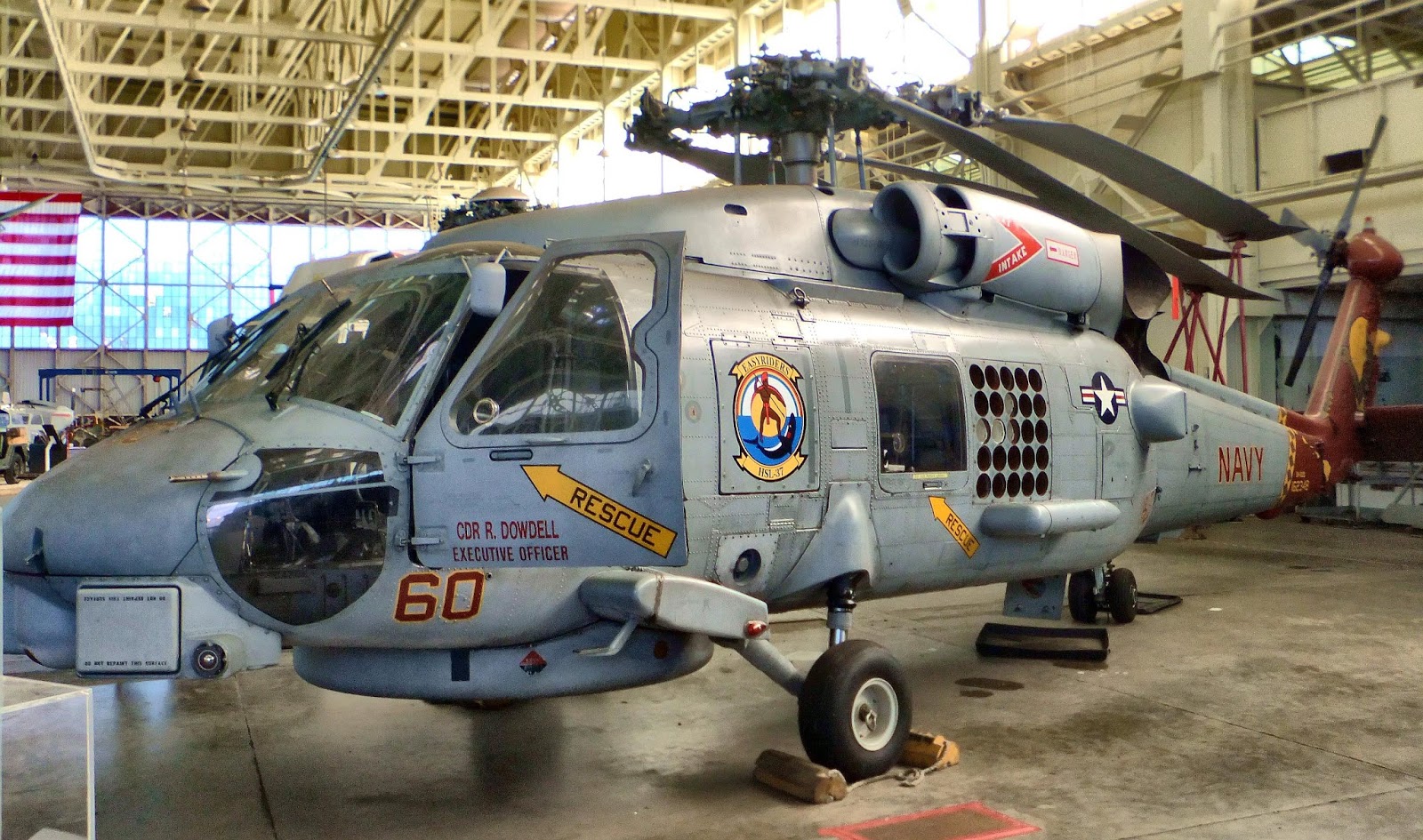

Subject: Sikorsky SH-60B Seahawk
Location:Pacific Aviation Museum, Pearl Harbor, Hawaii, 2011
Comments: The U.S. Navy uses the H-60 airframe under the model designations SH-60BSH-60FHH-60HMH-60R, and MH-60S. Able to deploy aboard any air-capable frigatedestroyercruiserfast combat support ship,amphibious assault ship, or aircraft carrier, the Seahawk can handle anti-submarine warfare (ASW), anti-surface warfare (ASUW), naval special warfare (NSW) insertion, search and rescue (SAR), combat search and rescue (CSAR), vertical replenishment (VERTREP), and medical evacuation (MEDEVAC).The SH-60B maintained 83% commonality with the UH-60A. The main changes were corrosion protection, more powerful T700 engines, single-stage oleo main landing gear, removal of the left side door, adding two weapon pylons, and shifting the tail landing gear 13 feet (3.96 m) forward to reduce the footprint for shipboard landing. Other changes included larger fuel cells, an electric blade folding system, folding horizontal stabilators for storage, and adding a 25-tube pneumatic sonobuoy launcher on left side. An emergency flotation system was originally installed in the stub wing fairings of the main landing gear; however, it was found to be impractical and possibly impede emergency egress, and thus was subsequently removed. Five YSH-60B Seahawk LAMPS III prototypes were ordered. The first YSH-60B flight occurred on 12 December 1979. The first production SH-60B made its first flight on 11 February 1983. The SH-60B entered operational service in 1984 with first operational deployment in 1985. The SH-60B is deployed primarily aboard frigatesdestroyers, and cruisers. The primary missions of the SH-60B are surface warfare and anti-submarine warfare. It carries a complex system of sensors including a towedMagnetic Anomaly Detector (MAD) and air-launched sonobuoys. Other sensors include the APS-124 search radar, ALQ-142 ESM system and optional nose-mounted forward looking infrared (FLIR) turret. Munitions carried include the Mk 46Mk 50, or Mk 54 torpedoAGM-114 Hellfire missile, and a single cabin-door-mounted M60D/M240 7.62 mm (0.30 in) machine gun or GAU-16 .50 in (12.7 mm) machine gun. (Source: Wikipedia)
